Oryginalny zdejmowany hak holowniczy do Octavii IV z wiązką elektryczną OEM03651807

The tow bar is another of the practical extras from the Škoda Genuine Accessories range that increase the utility of the vehicle. Manufactured from high-quality materials, it has undergone rigorous testing for strength and resistance to corrosion, as well as load tests. The tow bar complies with homologation E8 55R-01/07 55879 and all Czech and international regulations. Thanks to the simple, automatic mechanism for fitting and removing the ball hitch, no tools are needed – meaning that it is much simpler to meet the legal requirements for removing the ball hitch when the trailer is uncoupled. When you are driving abroad, the country-specific legal regulations must be followed at all times if you have not attached a trailer to the tow bar fitted to your car.

Retrofitting the tow bar places increased demands on the car’s cooling system. That‘s why it‘s necessary to have certain parts of the cooling system replaced by the Škoda Auto / B2B Service centre, using the information provided by the Škoda service technician.


Caution for hybrid engines - Octavia iV (PHEV):


Due to the specific engineering features of cars equipped with high-voltage batteries, we recommend you only use genuine Škoda tow bars, because Škoda Auto a.s. can guarantee their safety, reliability and compatibility with these cars.
Wrongly installed or incorrect tow bars can, in the event of an accident, damage the high-voltage components of the car, worsening the consequences of the accident or even causing fatal injury. We recommend having all the installation work done by Škoda authorized service partners.


For installation, further parts need to be ordered:

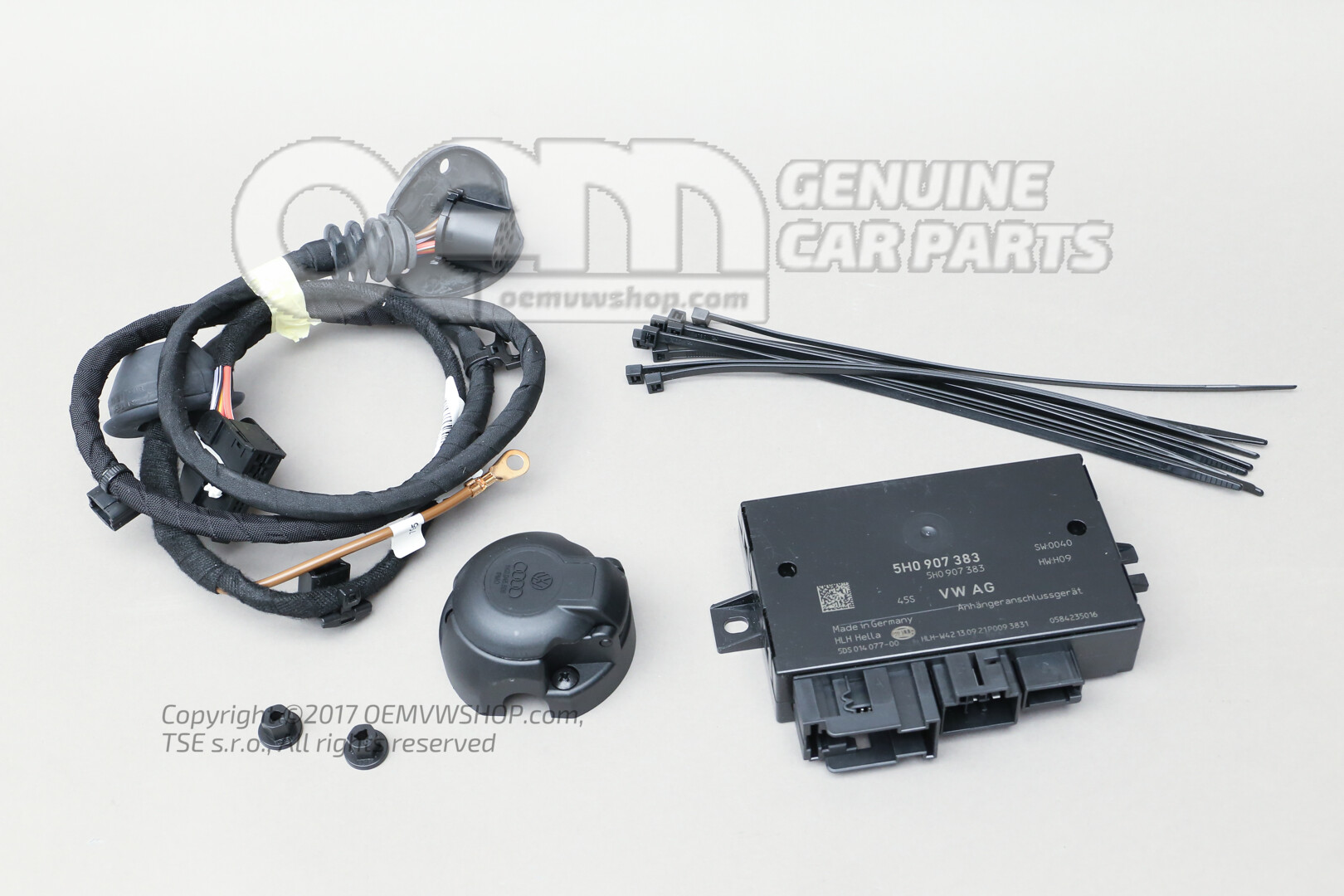

• For cars without a tow bar preparation: wiring set 5E3 055 204B.
• For Octavia Combi without a tow bar preparation: difusor (1pcs) 5E6 807 521.

Notice
Not suitable for

• Octavia G-TEC (CNG),
• Octavia RS,
• Octavia RS iV,
• cars exported to Australia,
• Octavia Scout produced until CW 12/2021.


For hybrid vehicles Octavia iV (PHEV) is possible only for:

• Limo (NX3) vehicles produced until CW 43/2020. From CW 44/2020 is posible only for vehicles with tow bar preparation
• Combi (NX5) vehicles produced until CW 43/2020 with raised chassis (PR-G12). From CW 44/2020 only for vehicles with tow bar preparation.


Cannot be retrofitted on 1.5 TSI 110kW cars without preparation for tow bar:

• CW 43/2020 and from CW 48/2020 until the end of CW 11/2021.
• Limo produced from CW 10/2020 until end of CW 43/2020 and from CW 48/2020 until the end of CW 11/2021.


Can only be fitted into vehicles without tow bar preparation with motorization:

• 1.0 TSI/81 kW and 1.0 TSI/81 kW mHEV
• 1,5 TSI produced from CW 44/2020 until the end of CW 47/2020 and from CW 12/2021 applies further, can only be installed provided with simultaneously removing the aerodynamic exhaust cover on the underbody of the car is necessary per the service manual.


If the specified procedure is not followed, there is a risk of damaging the fuel tank!
