Oryginalny zestaw naprawczy korpusu mechatroniki / akumulatora 0AM DQ200 P17BF, P189C Naprawa usterek OEM02546213

Genuine Audi VW Skoda Seat repair kit for 0AM / DQ200 gearboxes is a solution to hydraulic fluid leakage-related problems.

It is also possible to buy this kit with oil and seal .. (recommended) -> link

Fault codes P17BF, P189C or another regarding oil low pressure in mechatronic

Genuine Audi VW Skoda Seat overhaul kit for 0AM / 7speed mechatronic.
Fault codes P17BF, P189C or another are coming due to  cracked hydraulic case 0AM325066Aj in place where accumulator is placed.
Crack could visible at first sight after removing the black cover of the mechatronic or it can be very difficult to see due to the microcracks from side of hydraulic case and hydraulic case need to be removed to see it. Repair kit contains also genuine accumulator to replace it together with hydraulic case to avoid any issue with old accumulator.

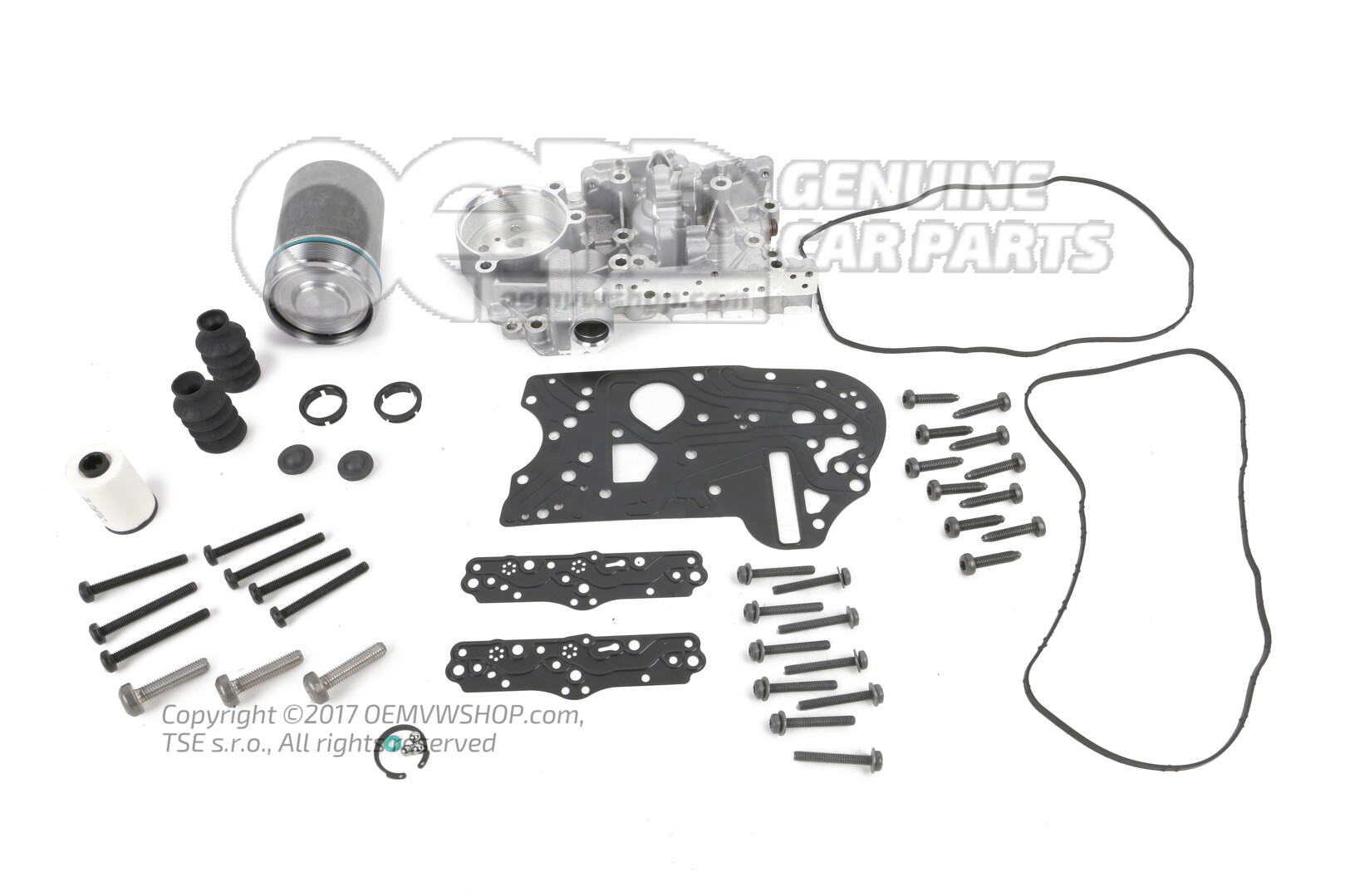

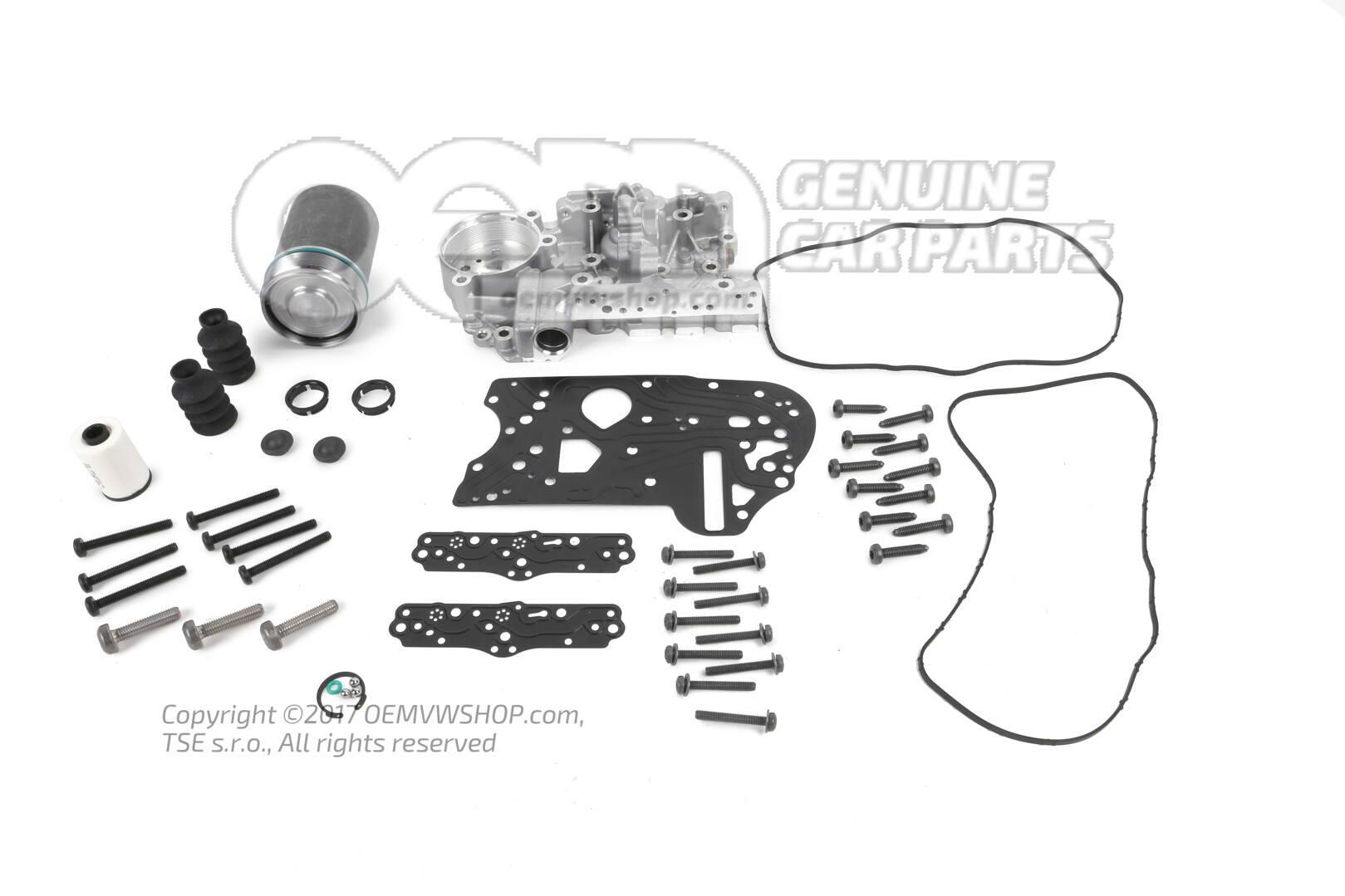

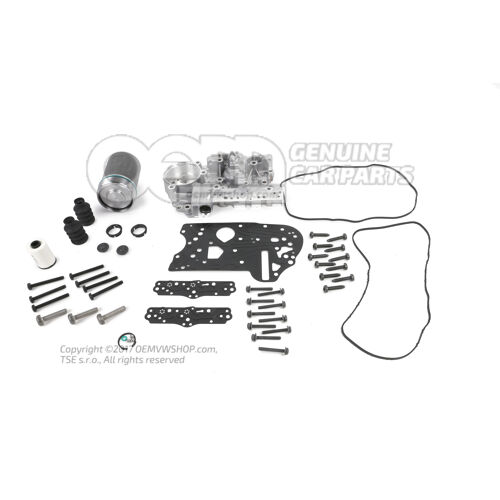

Scope of delivery:
0AM325066AJ - Accumulator body for DQ200 automatic gearbox
0AM325587F - hydraulic pulse memory
0AM325433e - filter element for 0AM / DQ200 gearbox
0AM325467J - Seal for accumulator body
N10451903 - 11x M6x30 Hexagon socket bolt
N10470706  - 7x M6x50 round head screw
0AM325483g - 2x accumulator body seal
N 0256561 - 3x Ball - diameter 5,5mm
N91132901 - 10 x hexagon head bolt M5x37
0AM927377 - 2x Seal for mechatronic body
WHT001165 - O-ring size 4x2mm
01x301127c - 3x  round head screw M8x35x30mm
N 91160601 - securing ring
Repair kit for 0AM pistons
Bellows - 2x
Sleeve - 2x
Ball socket - 2x

Recommended parts to replace:
G 004 000 M2 - Oil for mechatronic unit
N 90414203 - plug with seal
0AM325443D - Seal for mechatronic cover

This repair need to be made by autorised person.
